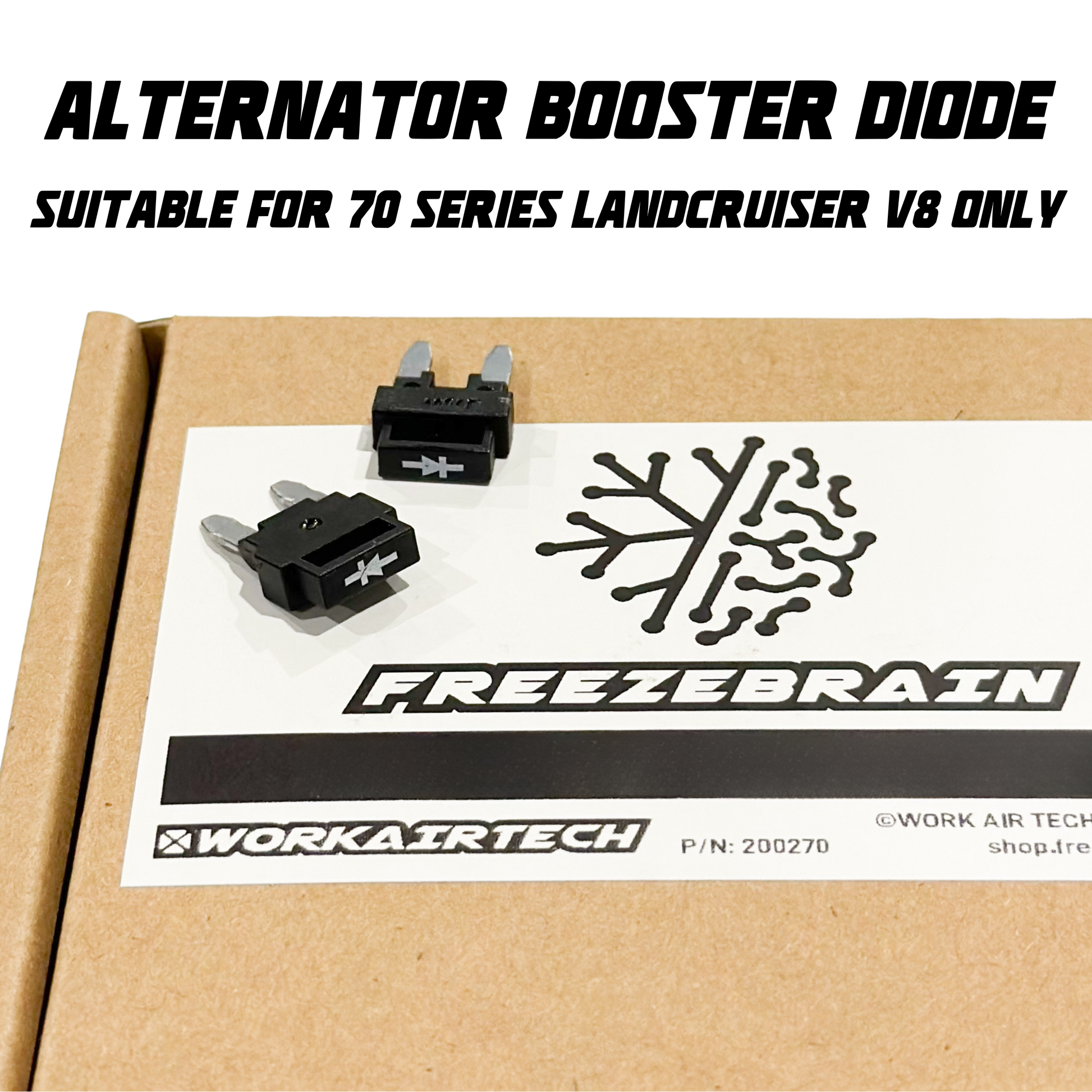

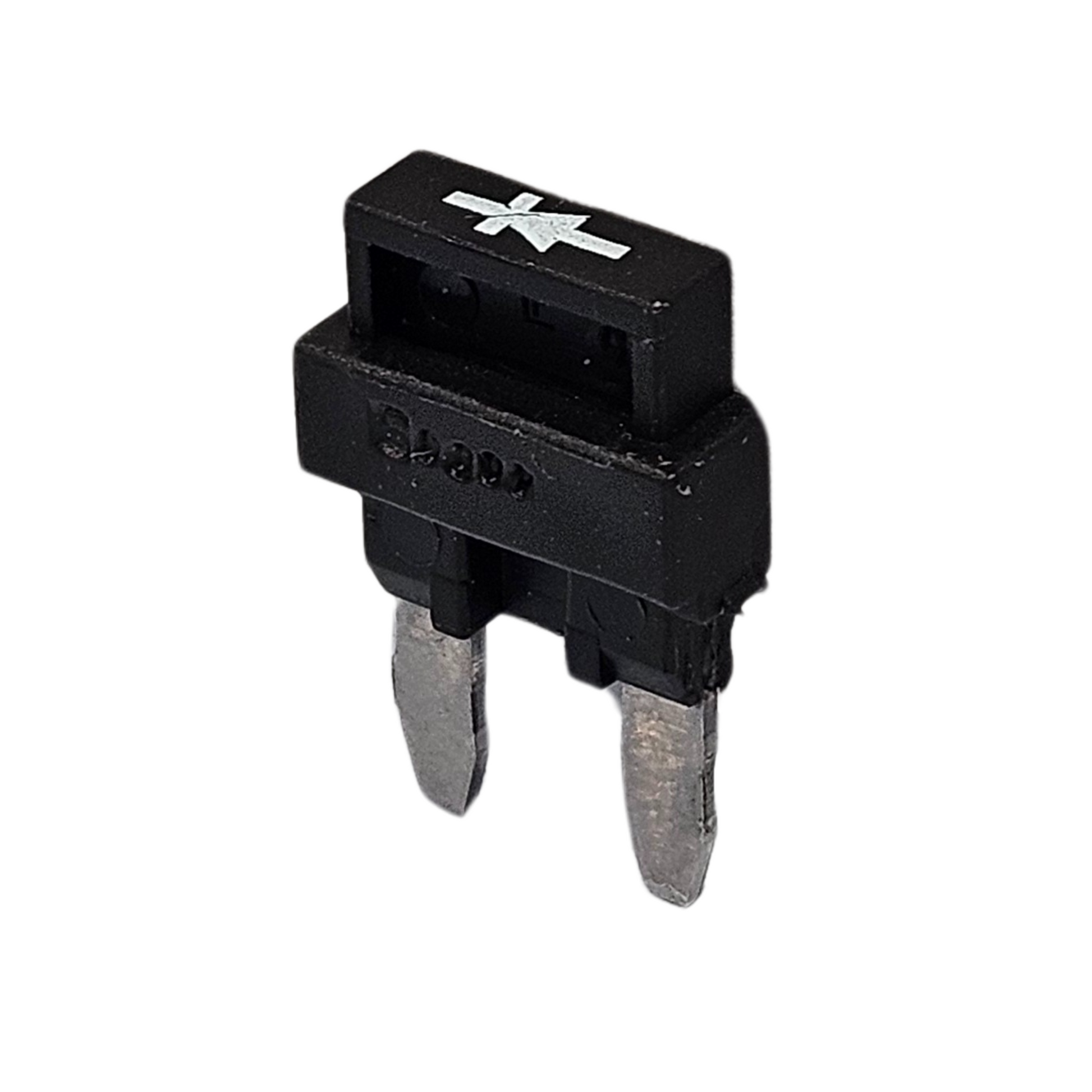

Alternator Booster Diode - Suitable for 70 Series Landcruiser 2009-ON V8 ONLY
Alternator Booster Diode - Suitable for 70 Series Landcruiser 2009-ON V8 ONLY
Couldn't load pickup availability
Built for the Bush, Backed by Experts
Built for the Bush, Backed by Experts
- Genuine Local Support: We aren't just a website; we’re 4WD enthusiasts based in Surry Hills, NSW.
- Free Australia-Wide Shipping: We ship every order across the country at no extra cost to you.
- Fitment Guarantee: We only stock gear we’ve tested on our own rigs to ensure it fits your Toyota perfectly.
- Trusted AU Business: Proudly Australian owned and operated with a verified ABN: 83 685 124 949.

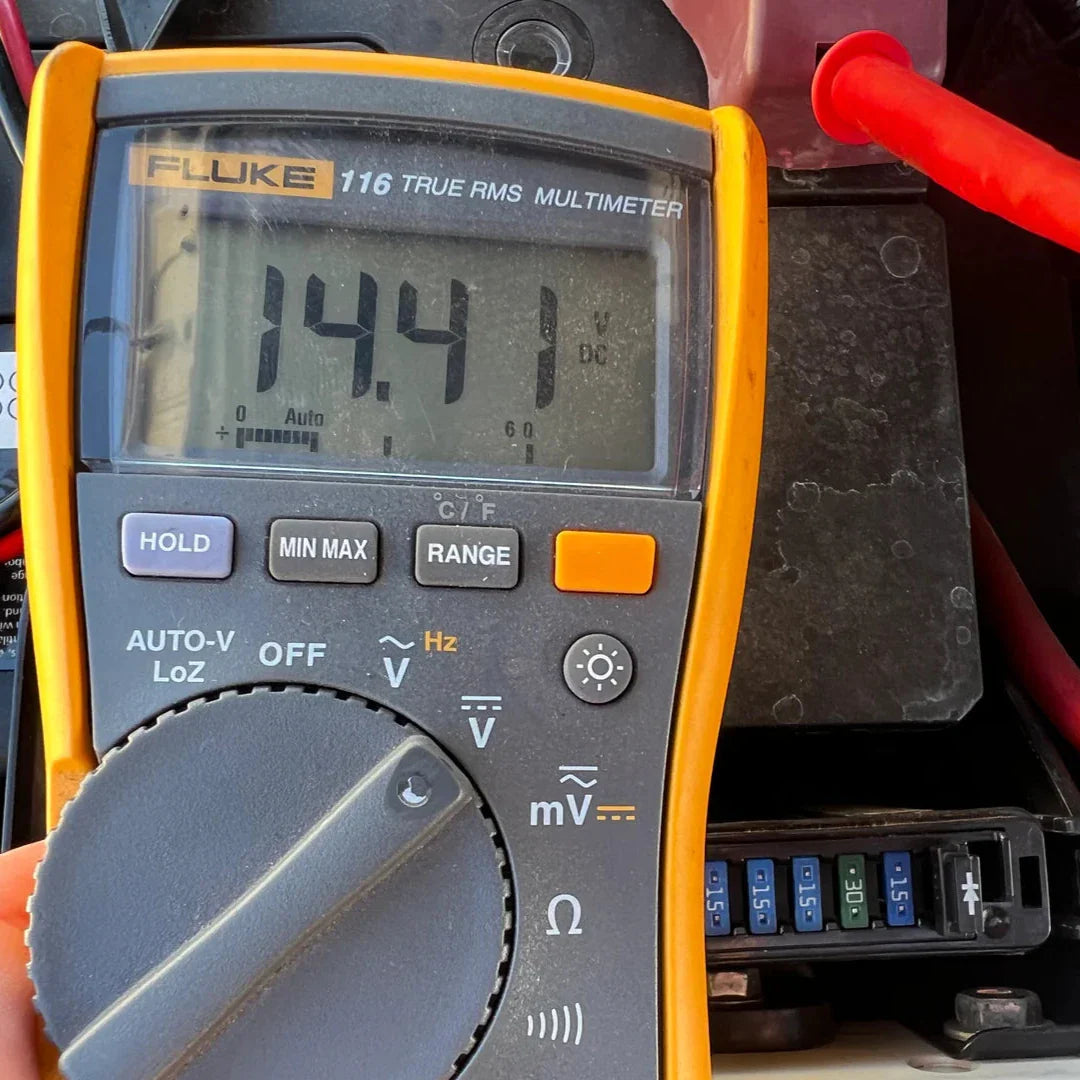

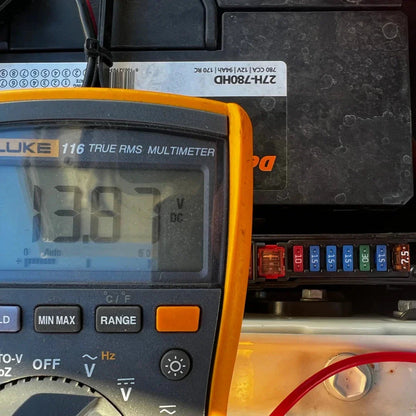

Boost your Land Cruiser’s charging performance with this Alternator Booster Diode designed specifically for 70 Series V8 models (76, 78, and 79 Series, 2009-on, 1VD-FTV engine). This simple plug-in upgrade increases alternator output by approximately 0.5 volts to maintain the best charge levels for cranking and auxiliary batteries.

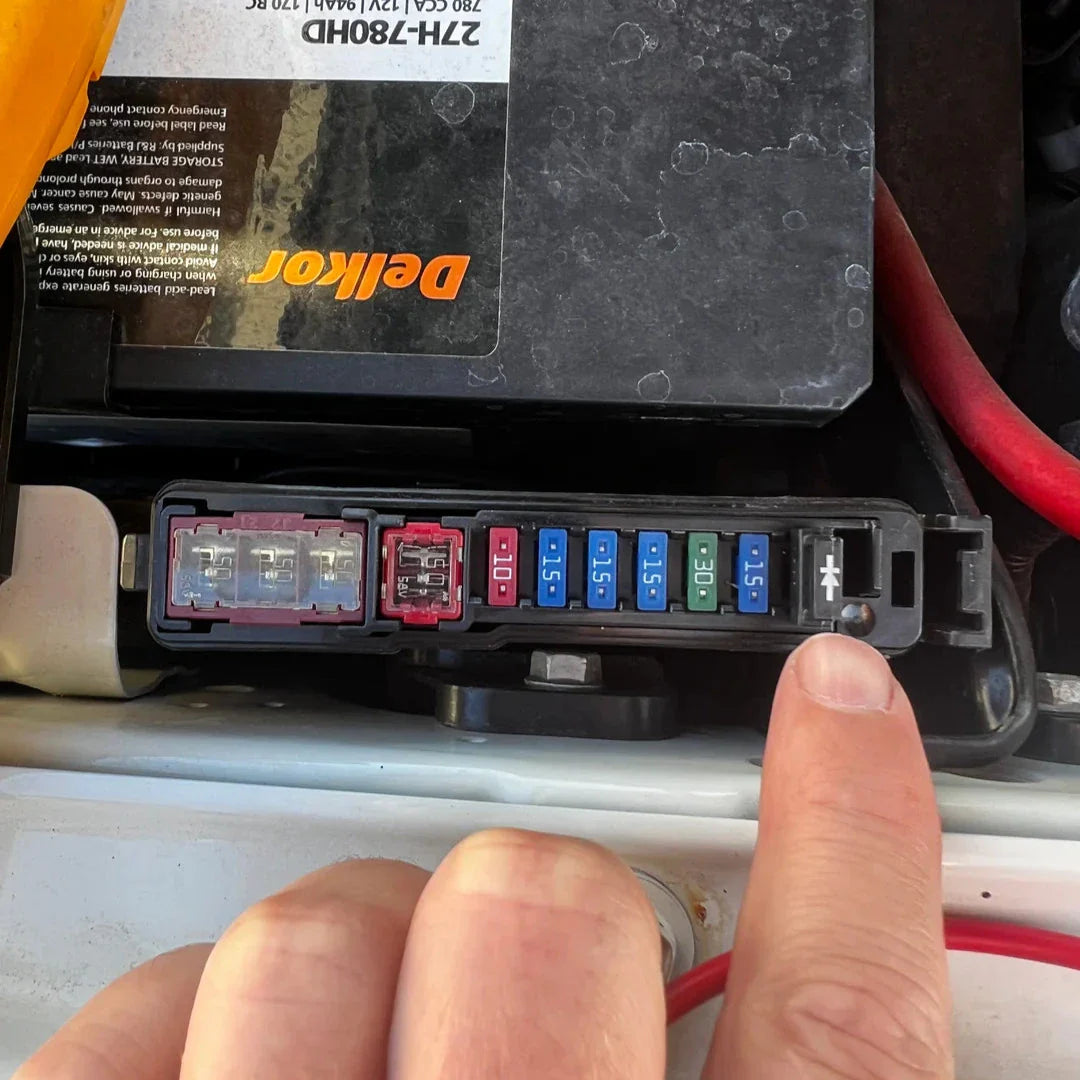

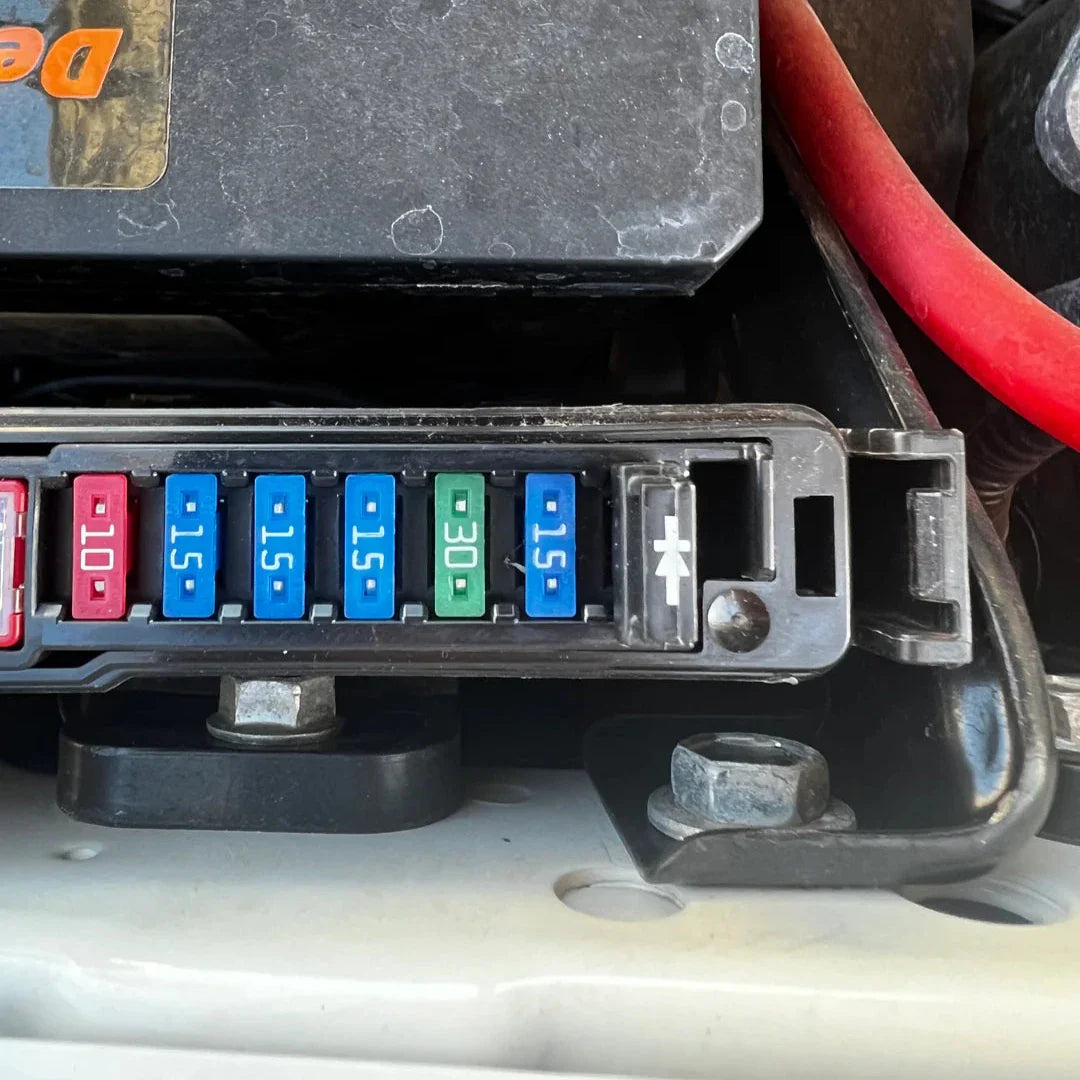

Ensuring more consistent voltage under heavy electrical loads, this Alternator Booster Diode is an excellent choice if you use power-hungry accessories such as a fridge or winch. Installing it is easy – simply follow the instructions to replace the factory alternator signal (ALT-S) fuse with it. A perfect companion to the LC70 FreezeBrain AC Amplifier, this diode offers improved reliability and charging efficiency.
Full installation instructions are provided.
Suitable for use with: 76, 78 & 79 Series 2009-Current V8 only (1VD-FTV)
Frequently Asked Questions
What is the purpose of an alternator booster diode?
An alternator booster diode alters the voltage sensing circuit to safely increase charging output. Factory Toyota charging profiles are typically optimized for standard starting batteries, meaning they often sit too low to fully top up modern dual-battery touring configurations. This booster diode offsets the voltage signal by approximately 0.5V to 0.6V, prompting the alternator to increase its baseline charging layout to properly charge auxiliary batteries.
Which specific LandCruiser models and battery types benefit from this upgrade?
This specialized electrical component is configured primarily to suit Toyota LandCruiser 70 Series engine bays running 12V electrical systems. It is highly beneficial for overland touring setups utilizing deep-cycle auxiliary batteries, particularly modern high-charge-voltage layout designs such as Calcium, AGM (Absorbed Glass Mat), or gel-cell configurations that require higher charging thresholds to reach full capacity.
Can installing a booster diode cause damage to my factory alternator or electronics?
When using a high-quality, correctly specified inline diode, the voltage adjustment stays well within the safe operational parameters of factory electrical infrastructure. The minor voltage boost remains below standard over-voltage thresholds, protecting sensitive engine management modules, dashboard gauges, and electronics while optimizing the efficiency of your under-bonnet power layout.
What are the warning signs that your deep-cycle dual battery setup is undercharging?
The most immediate warning symptom is your portable 12V fridge cutting out early overnight due to low-voltage disconnect limits. You might also notice sluggish performance from 12V accessories, prolonged charge recovery times on your secondary dashboard monitor, or premature battery degradation caused by persistent under-the-bonnet voltage layout drops on long highway drives.
What critical step must be followed during installation to ensure proper electrical direction?
Proper execution during fitting is absolute to avoid blowing fuses or disrupting charging behavior. Diodes are directional electrical components that only allow current flow in one specific pathway. When replacing the standard ALT-S fuse or wire linkage with the booster diode assembly, ensure the structural orientation line exactly matches the vehicle's factory wiring guide. Double-check all terminal contact regions to guarantee a low-resistance path before starting the vehicle.
