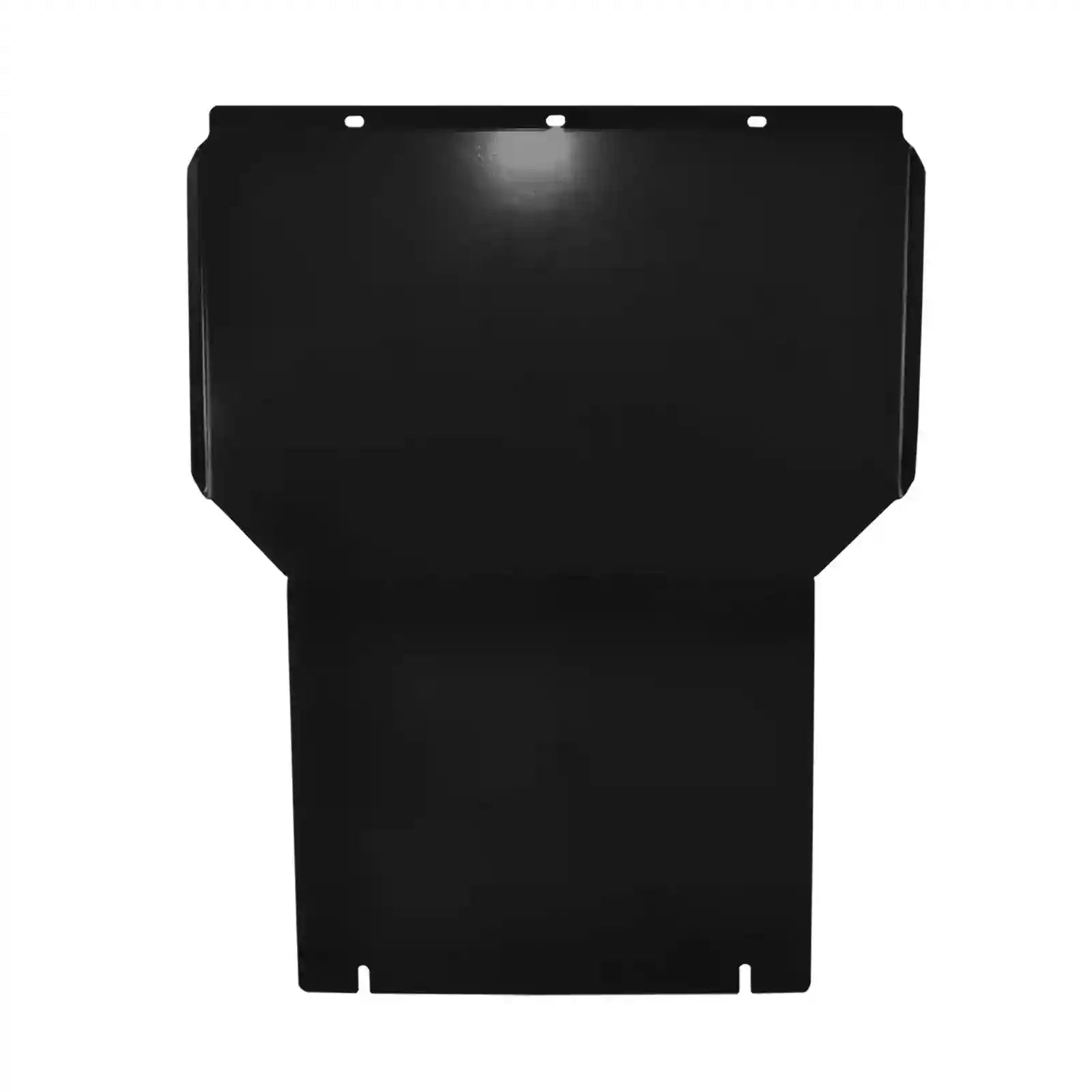

Bash Plate Sump Guard – Toyota LandCruiser 100 Series (Black 4mm 1997-2007)
Protect the engine oil pan, sump, steering components, front crossmember and underbody of your Toyota LandCruiser 100 Series (HDJ100, HZJ105, UZJ100, 1997-2007) with this heavy-duty 4mm thick front bash plate/sump guard from Machter Auto Parts. Laser-cut from high-strength steel and finished in tough matte black powder coat – built to take hits from rocks, logs, ruts and outback punishment while maintaining ground clearance and radiator/intercooler airflow for serious towing, off-road touring or daily work on gravel, corrugations and remote tracks across Australia.
Key Features
- Full front sump & engine bash plate – covers oil pan, lower timing cover, steering box, front crossmember and lower radiator area
- Direct bolt-on fit for 1997-2007 Toyota LandCruiser 100 Series (HDJ100/HZJ105/UZJ100 all variants)
- 4mm thick high-strength steel plate – ribbed and gusseted for maximum rigidity and impact absorption
- Matte black powder coat finish – rust-resistant, low-glare and blends with underbody
- Pre-drilled mounting holes – uses factory chassis points or included high-tensile bolts
- Vented design with drainage slots – allows cooling airflow while blocking rocks, mud and sticks
- Weight: Approx. 15-20kg – adds serious protection without killing payload or fuel economy
Benefits
- Prevents costly oil pan punctures & engine damage – critical for rock crawling, river crossings or steep inclines
- Shields steering & sump from impacts – avoids leaks, bent parts or costly repairs on rough terrain
- Maintains ground clearance & approach angle – no major loss in off-road capability
- Durable black finish – resists chipping, rust and UV better than basic paint
- Easy install – bolt-on in a few hours, no welding required
- Perfect for work rigs, weekend adventurers or lifted 100 Series – keeps your Cruiser protected and reliable
Fitment Notes
- Suitable for 1997-2007 Toyota LandCruiser 100 Series (HDJ100/HZJ105/UZJ100) – all engines and body styles
- Professional installation recommended – torque bolts to spec, check clearance with full droop/compression and radiator/intercooler
- May require minor trimming or additional brackets if fitted with aftermarket bullbar, winch or snorkel
- Pair with transmission/transfer case bash plate for complete underbody armour
Free shipping Australia-wide • 30-day returns • Machter Auto Parts – tough gear for real 4x4s
Frequently Asked Questions
What underbody components does this bash plate protect?
This heavy-duty guard is designed to shield the most critical and vulnerable mechanical components under the front of your vehicle. It provides a solid barrier for the engine oil sump, front differential housing, and vital steering linkages, protecting them from catastrophic damage caused by rocks, logs, stumps, and deep ruts on the trail.
Is a 4mm steel plate significantly better than the factory guard?
Absolutely. The factory underbody protection is typically made from thin, fragile tin or plastic sheets intended primarily for aerodynamics and road splash protection—they quickly buckle under any real off-road impact. This 4mm structural steel plate is engineered to absorb and deflect severe impacts, ensuring your chassis and drivetrain remain unharmed during rugged touring.
Does this bash plate fit both Independent Front Suspension (IFS) and solid-axle 105 models?
This specific sump guard is optimized to suit the standard 100 Series layout. Because the Independent Front Suspension (IFS) models (UZJ100 and HDJ100) have a completely different subframe setup compared to the solid-axle 105 Series (HZJ105 and FZJ105), mounting points can differ. Please confirm your specific front suspension setup against the product listing geometry prior to purchase.
Will I need to drill holes into my chassis to install this?
No drilling or welding is required. This bash plate is designed as a direct bolt-on upgrade that aligns perfectly with the pre-existing factory threaded mounting holes on your LandCruiser's chassis rails. High-tensile mounting hardware is typically included to replace the weak factory bolts.
Do I need to remove the plate completely during an oil change?
The guard is thoughtfully designed with serviceability in mind. It incorporates integrated service cutouts and drainage windows that allow you or your mechanic to access the oil sump drain plug and oil filter easily. This layout saves significant maintenance time during regular oil changes, avoiding the hassle of unbolting a heavy steel plate every service.
