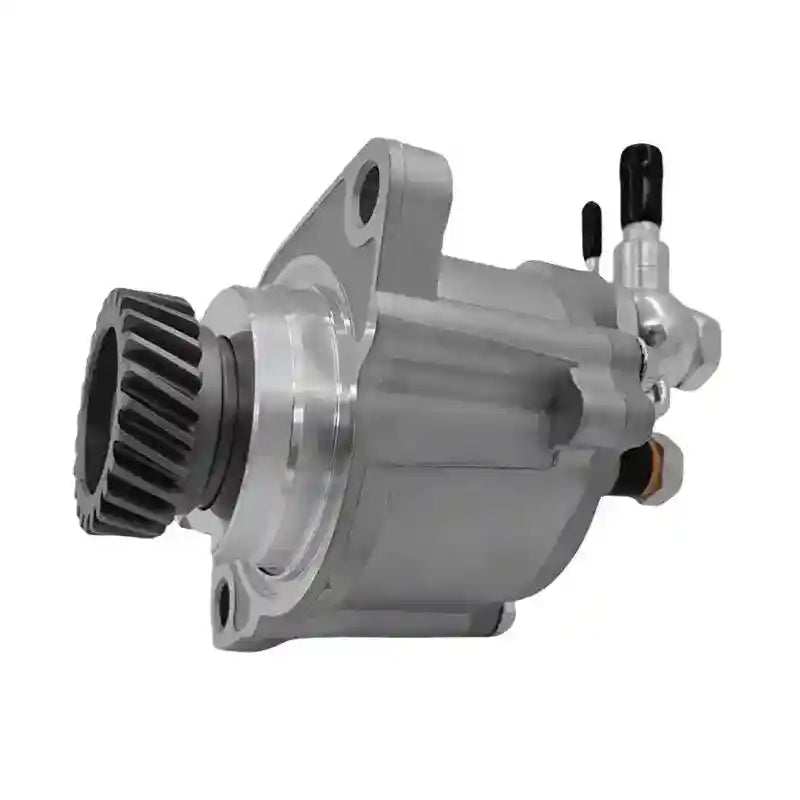

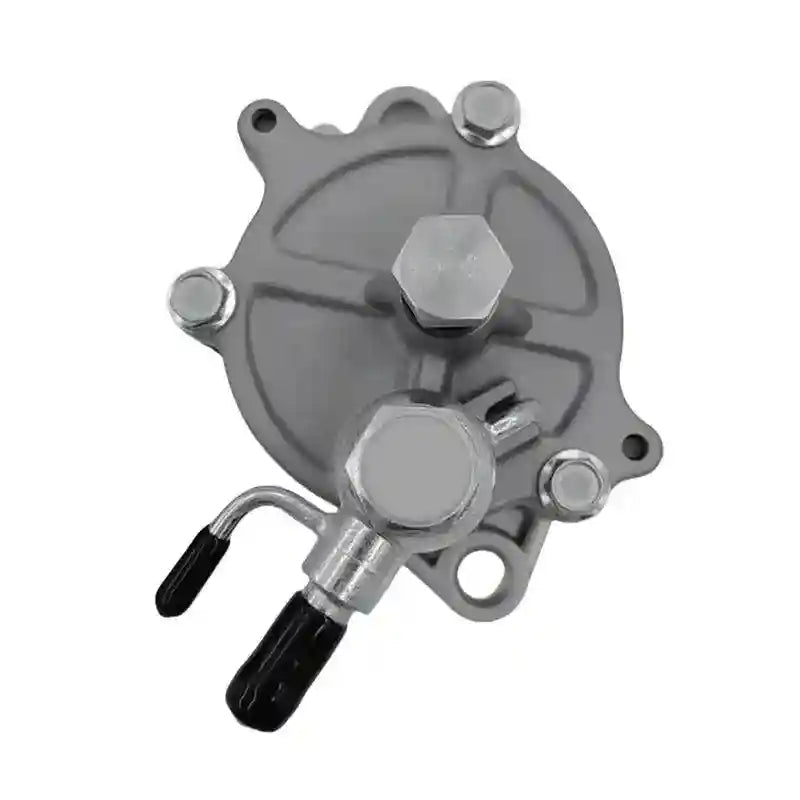

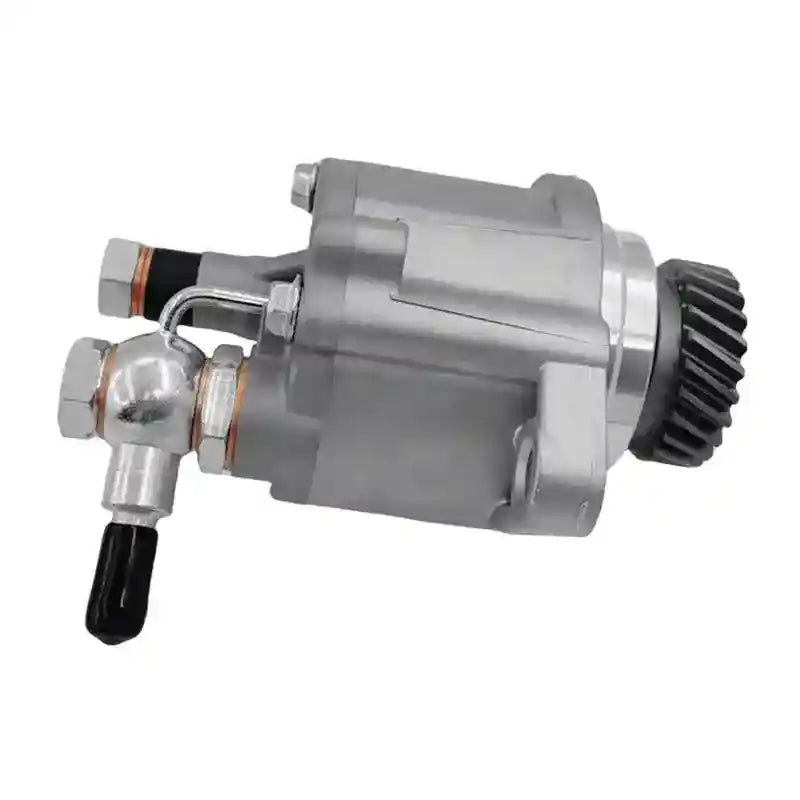

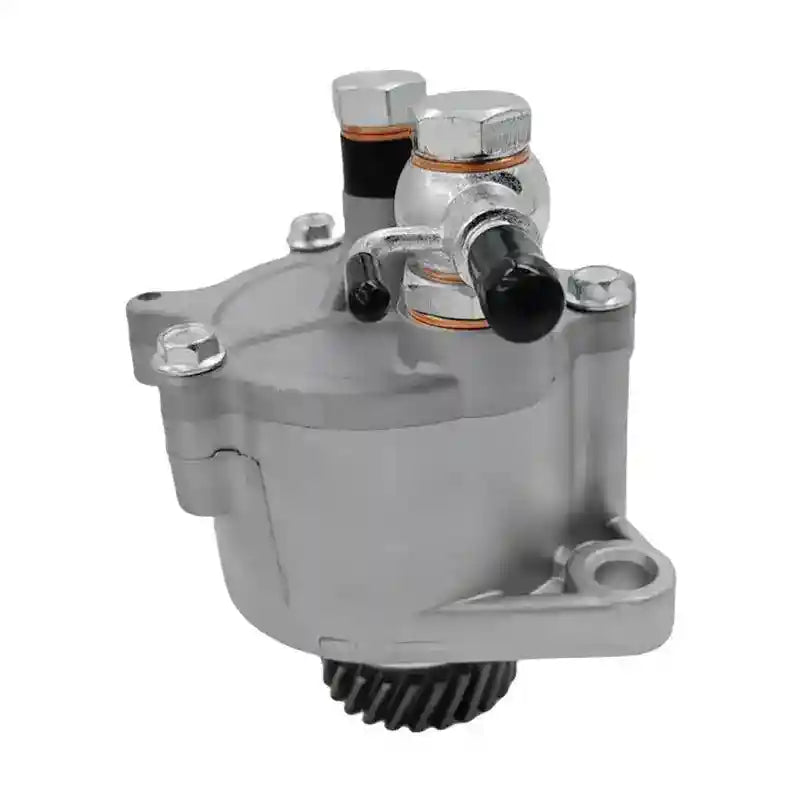

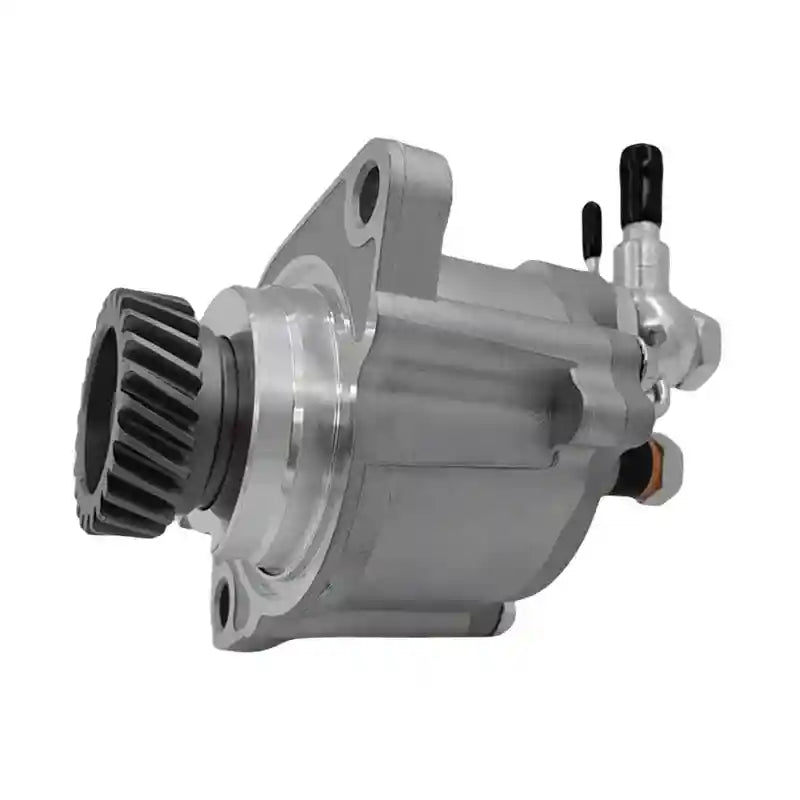

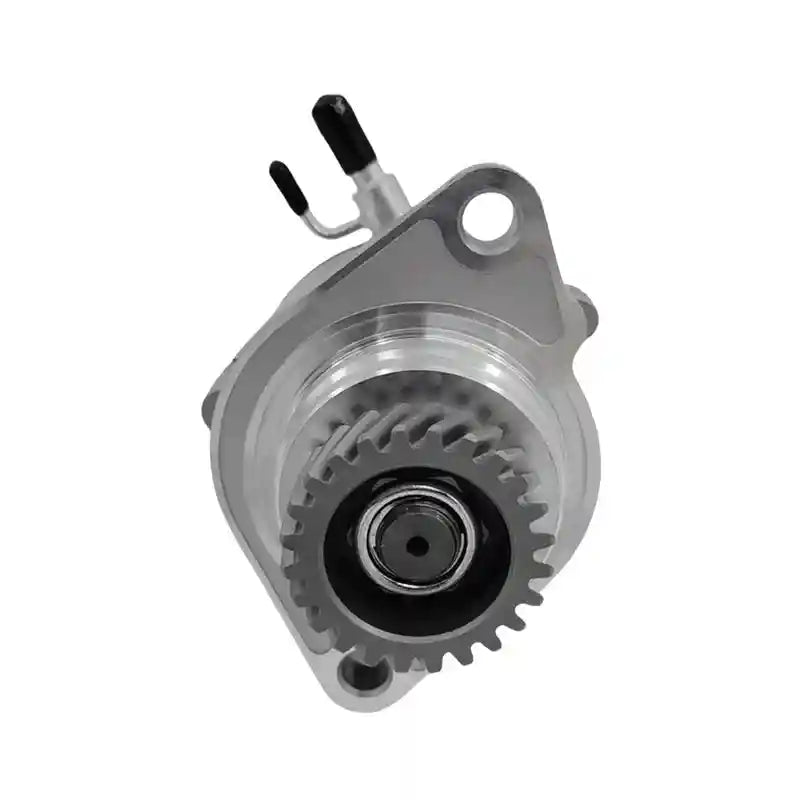

Engine Vacuum Pump – Toyota LandCruiser 70 75 80 100 Series 1PZ 1HZ 1HD (Ref 29300-17010)
Restore strong brake assist, reliable 4WD actuator engagement, and proper vacuum for accessories on your Toyota LandCruiser 70, 75, 80, or 100 Series (1PZ 3.0L, 1HZ 4.2L, or 1HD-T/1HD-FT/1HD-FTE diesel) with this high-quality engine vacuum pump. Direct replacement for the factory belt-driven pump (OEM ref 29300-17010) – critical for work utes, troop carriers, wagons, or 4x4s that have developed weak brakes, hard pedal, poor 4WD shifting, or vacuum leaks after high mileage, towing, or off-road abuse in Aussie heat and dust.
Key Features
- Complete vacuum pump assembly – includes vanes, housing, gasket, and mounting hardware
- Direct bolt-on fit for 1PZ (3.0L), 1HZ (4.2L), 1HD-T/1HD-FT/1HD-FTE diesel engines in 70 Series (HZJ70/HZJ73/HZJ75/HZJ78/HZJ79), 75 Series (HJ75/HDJ75/HZJ75), 80 Series (HDJ80/HZJ80), and 100 Series (HDJ100/HZJ105)
- High-quality vane-type pump – precision-machined internals for consistent vacuum output (typically 600-700 mmHg)
- Durable aluminium housing with corrosion-resistant coating – withstands heat, oil, and contaminants
- Reinforced drive coupling and bearings – handles belt tension and engine vibration without premature failure
- Compatible with factory vacuum lines, check valves, brake boosters, and 4WD actuators
- Meets or exceeds OEM specifications (ref 29300-17010 or equivalent) for vacuum level, flow, and durability
Benefits
- Strong, consistent vacuum – restores firm brake pedal feel and reliable power assist under heavy load or towing
- Reliable 4WD engagement – fixes issues with freewheeling hubs or actuator vacuum on 70/80/100 Series
- Stops whining noise, oil leaks, or vacuum loss – cleans the engine bay and provides quieter operation
- Prevents brake fade or hard pedal – essential for safety on steep descents or emergency stops
- Restores factory performance – critical for roadworthy compliance and heavy-duty use in NSW
- Great for high-mileage work rigs, off-road builds, or resto projects – keeps your 1HZ/1HD-powered Cruiser reliable
Fitment Notes
- Suitable for Toyota LandCruiser with 1PZ 3.0L, 1HZ 4.2L, or 1HD series diesel: 70 Series (HZJ70/HZJ73/HZJ75/HZJ78/HZJ79), 75 Series (HJ75/HDJ75/HZJ75), 80 Series (HDJ80/HZJ80), 100 Series (HDJ100/HZJ105)
- Professional installation recommended – replace vacuum lines/check valve, inspect belt/tensioner, and test vacuum output after fitting
- Use fresh engine oil and check for leaks – bleed brake system if air entered during work
- Inspect alternator belt (often shared drive) and vacuum hoses while the pump is off
Free shipping Australia-wide • 30-day returns • Built tough for real Aussie 4x4s
Frequently Asked Questions
What is the primary function of the engine vacuum pump on a diesel LandCruiser?
Unlike petrol variants that naturally create manifold vacuum, diesel configurations operate without a throttle butterfly restriction and cannot generate sufficient natural vacuum pressure. This mechanical vacuum pump is driven directly by the engine's timing gear train layout to constantly generate the vacuum necessary to operate critical auxiliary accessories, including your power brake booster diaphragm and 4WD differential engagement actuators.
Which specific LandCruiser models and engine variants does this pump fit?
This premium replacement assembly (equivalent to OEM part number 29300-17010) is precision-matched for Toyota’s heavy-duty 1PZ, 1HZ, and 1HD series engine families. It serves as a direct bolt-on replacement for generations of workhorse touring platforms, including the 70/75 Series (PZJ70, HZJ75), 78/79 Series (HZJ78, HZJ79), 80 Series (HZJ80, HDJ80), and early 100/105 Series (HZJ105) diesel models layout.
What are the warning signs of a worn or failing mechanical vacuum pump?
The most critical hazard sign is a hard, heavy, or woody brake pedal that requires massive physical leg effort to slow down the rig, indicating a loss of vacuum assistance. You may also notice erratic operation of the factory vacuum-actuated 4WD selectors, or an aggressive oil leak pooling down the driver's side of the engine block from worn pump body seals or internal shaft rings.
Is this vacuum pump driven by an auxiliary belt or integrated into the engine gears?
This heavy-duty assembly features a gear-driven mechanical design rather than a belt-driven layout. It bolts directly flush onto the rear side of the engine timing gear housing casing, with its internal splined drive shaft meshing directly into the rotating gear train loop. This robust configuration ensures continuous vacuum delivery during extreme water crossings or remote outback conditions without the risk of belt slippage.
What is the correct procedure for ensuring a leak-free installation?
Proper execution during mounting preparation is mandatory to prevent future engine oil leaks. Ensure the timing housing mating face is polished perfectly clean and completely free of old gasket compound residue. Always install a fresh high-compliance mounting seal or gasket, pre-lubricate the pump’s internal splines with a smear of fresh engine oil to facilitate smooth gear engagement, and torque the retention fasteners strictly to vehicle factory metric specifications.
