Front Axle Drive CV Flange - Suitable for Toyota HDJ100, UZJ100, V8 FZJ105, HZJ105, 105 Series
Front Axle Drive CV Flange - Suitable for Toyota HDJ100, UZJ100, V8 FZJ105, HZJ105, 105 Series
Couldn't load pickup availability
Built for the Bush, Backed by Experts
Built for the Bush, Backed by Experts
- Genuine Local Support: We aren't just a website; we’re 4WD enthusiasts based in Surry Hills, NSW.
- Free Australia-Wide Shipping: We ship every order across the country at no extra cost to you.
- Fitment Guarantee: We only stock gear we’ve tested on our own rigs to ensure it fits your Toyota perfectly.
- Trusted AU Business: Proudly Australian owned and operated with a verified ABN: 83 685 124 949.

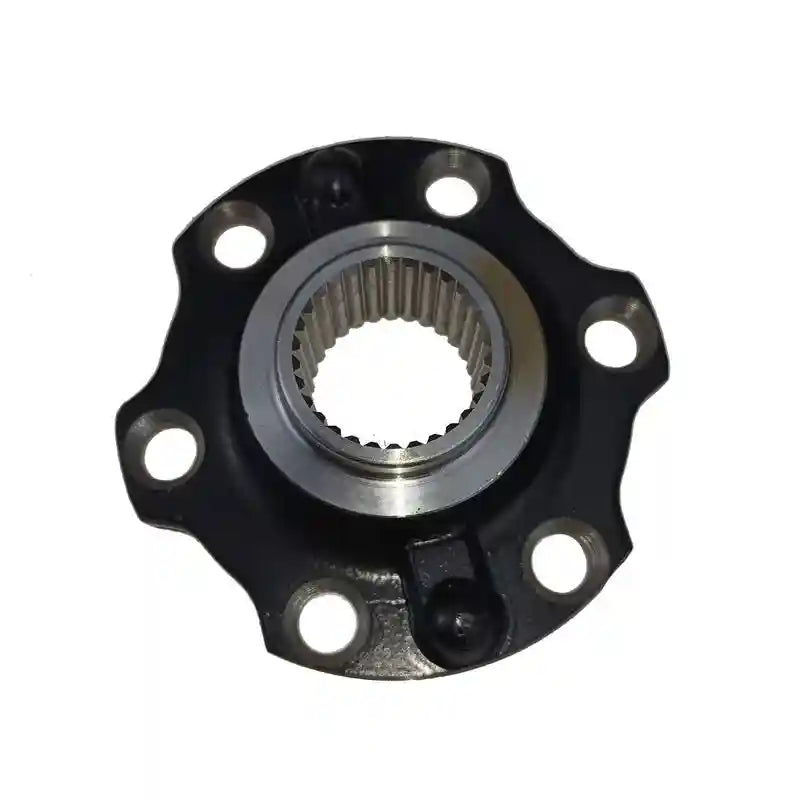

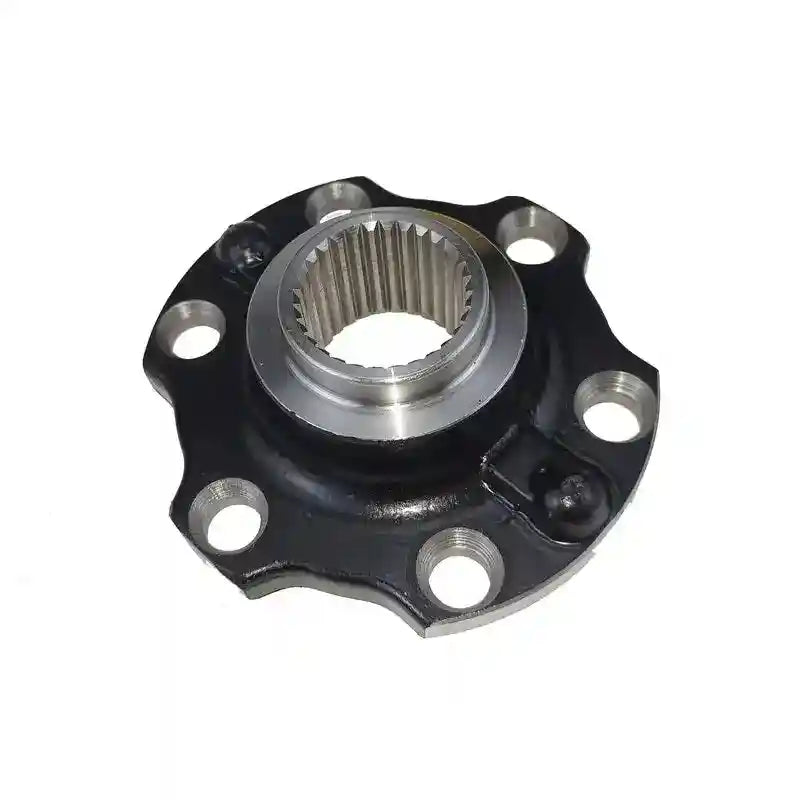

Front Axle Drive CV Flange – Toyota LandCruiser HDJ100 UZJ100 FZJ105 HZJ105 105 Series
Replace your worn, damaged, cracked or corroded front axle CV flange (inner CV joint flange/hub flange) on your Toyota LandCruiser 100 Series (HDJ100 1HD-FTE turbo diesel, UZJ100 2UZ-FE V8 petrol) or 105 Series (FZJ105/HZJ105) with this heavy-duty CV flange from Machter Auto Parts. Direct replacement for the factory inner CV flange – restores smooth power delivery, eliminates clicking on turns, vibration, grease leaks or complete CV failure after high mileage, off-road abuse, towing, mud, salt or water crossings in Australia.
Key Features
- High-strength forged steel CV flange (inner joint to hub connection)
- Direct bolt-on fit for Toyota LandCruiser 100 Series (HDJ100/UZJ100 1998-2007) and 105 Series (FZJ105/HZJ105 1998-2007) with IFS front axle
- Precision-machined splines & bolt holes – perfect fit to CV joint and hub without play
- Corrosion-resistant black phosphate or zinc coating – withstands salt spray, mud and wet conditions
- Pre-drilled for factory 6-bolt pattern – includes high-tensile bolts if required
- Compatible with factory or aftermarket CV joints, boots, hubs and knuckles
Benefits
- Eliminates clicking/grinding on turns – smooth power to wheels in low-range or tight tracks
- Stops vibration & driveline shudder – better highway stability and less fatigue
- Prevents grease loss & water ingress – protects CV joint from contamination & failure
- Restores factory performance – essential for towing, off-road or daily driving safety
- Stronger than worn originals – handles heavy loads & abuse without premature failure
- Great for high-mileage work rigs, lifted builds or resto projects – brings front driveline back to solid
Fitment Notes
- Suitable for Toyota LandCruiser 100 Series (HDJ100/UZJ100 1998-2007) and 105 Series (FZJ105/HZJ105 1998-2007) with IFS front axle
- Professional installation recommended – torque flange bolts to spec (usually 70-90 Nm), grease CV splines, check wheel alignment and test drive
- Replace both sides together – worn flanges cause uneven power delivery and wear
- Inspect CV boots, hubs, knuckles, wheel bearings & diff output while flange is off – common to do full front-end refresh
- Confirm your axle type (IFS only) – does not fit solid front axle models
Free shipping Australia-wide • 30-day returns • Machter Auto Parts – tough gear for real 4x4s
Frequently Asked Questions
What is the function of the front axle drive CV flange?
The front drive flange acts as the critical mechanical connection point that locks your outer CV joint axle splines directly to the front wheel hub assembly. On full-time 4WD models, this heavy-duty flange ensures engine torque is continuously and reliably transferred down through the front wheels to maintain constant traction on or off the trail.
Which Toyota LandCruiser models is this drive flange suitable for?
This replacement drive flange is engineered to fit both independent front suspension (IFS) and solid axle layouts within the 100 and 105 Series families built between 1998 and 2007. It is a direct fit for the IFS 100 Series models powered by the 4.2L turbo-diesel (HDJ100) and 4.7L V8 petrol (UZJ100), as well as the live-axle 105 Series configurations powered by the 4.5L petrol (FZJ105) and 4.2L naturally aspirated diesel (HZJ105).
What are the symptoms of a worn or failing front drive flange?
The most distinct warning sign is an excessive amount of "clunking" or drivetrain backlash when you lift off or step on the accelerator pedal, caused by the internal splines chewing out over time. Other symptoms include a metallic clicking noise when turning under load or visible grease escaping around the outer cap seal face due to structural fatigue.
Why do original factory drive flanges strip their splines?
Because full-time 4WD setups subject these drive components to constant rotational strain, the internal splines are prone to wear over hundreds of thousands of kilometers. This degradation accelerates dramatically on rigs with large off-road mud tyres, front differential lockers, or added modifications like turbo upgrades that force massive low-end torque through the driveline.
Is this product sold as an individual unit or as a matching pair?
This listing is for a single (1) front axle drive flange. It can be installed on either the Left-Hand Side or the Right-Hand Side hub assembly. If you are tracking down an elusive drivetrain vibration or refreshing an aging front end, we highly advise purchasing a pair to completely match tolerances across both sides of the axle loop.
