Ignition Barrel (9 Pins Door Lock Cylinder) - Suitable for Landcruiser 70, 75, 76, 78 & 79 Series
Ignition Barrel (9 Pins Door Lock Cylinder) - Suitable for Landcruiser 70, 75, 76, 78 & 79 Series
Couldn't load pickup availability
Built for the Bush, Backed by Experts
Built for the Bush, Backed by Experts
- Genuine Local Support: We aren't just a website; we’re 4WD enthusiasts based in Surry Hills, NSW.
- Free Australia-Wide Shipping: We ship every order across the country at no extra cost to you.
- Fitment Guarantee: We only stock gear we’ve tested on our own rigs to ensure it fits your Toyota perfectly.
- Trusted AU Business: Proudly Australian owned and operated with a verified ABN: 83 685 124 949.

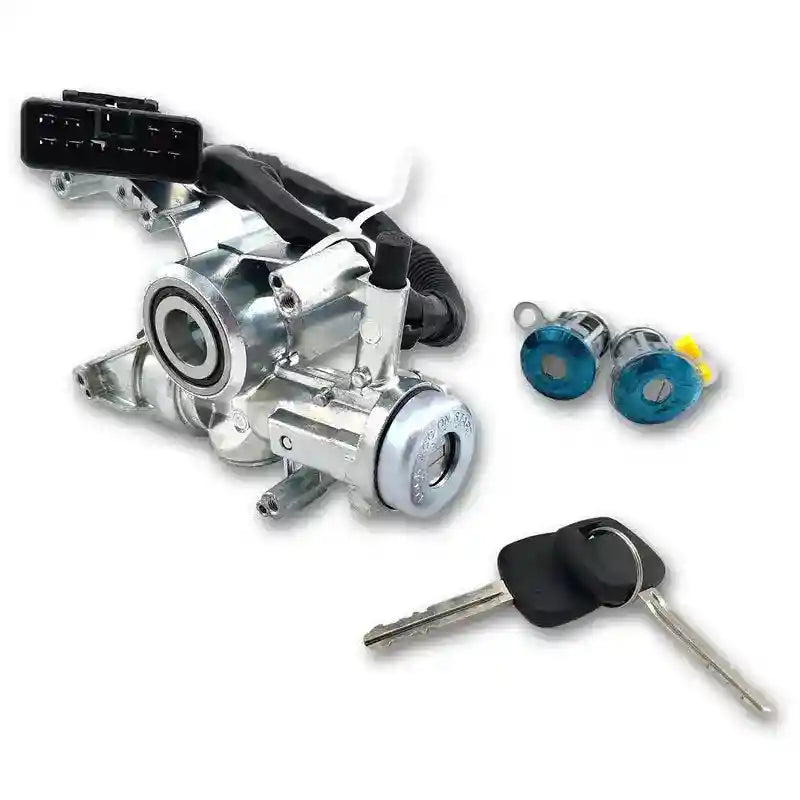

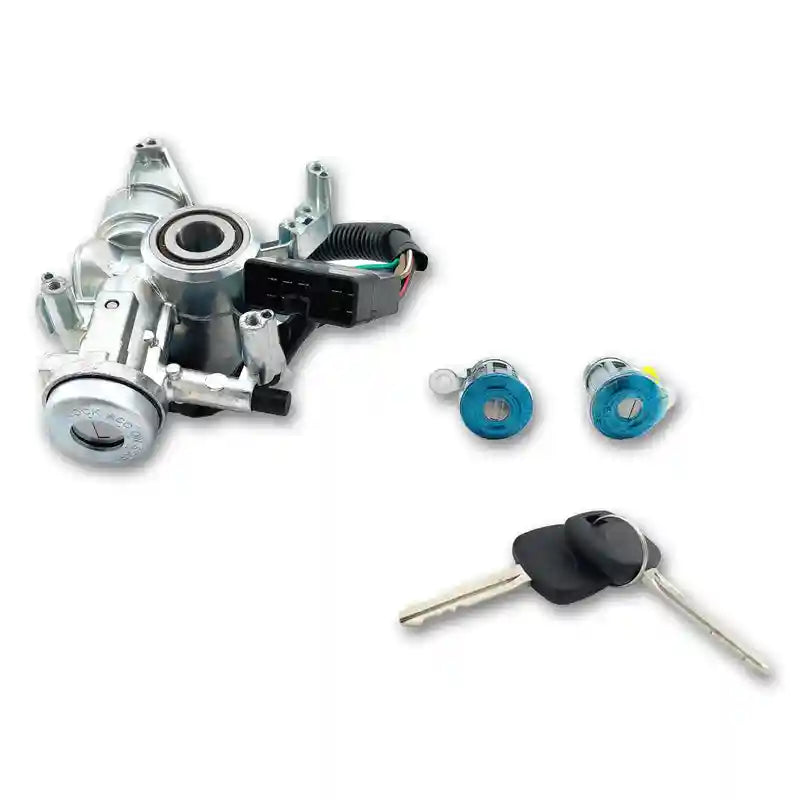

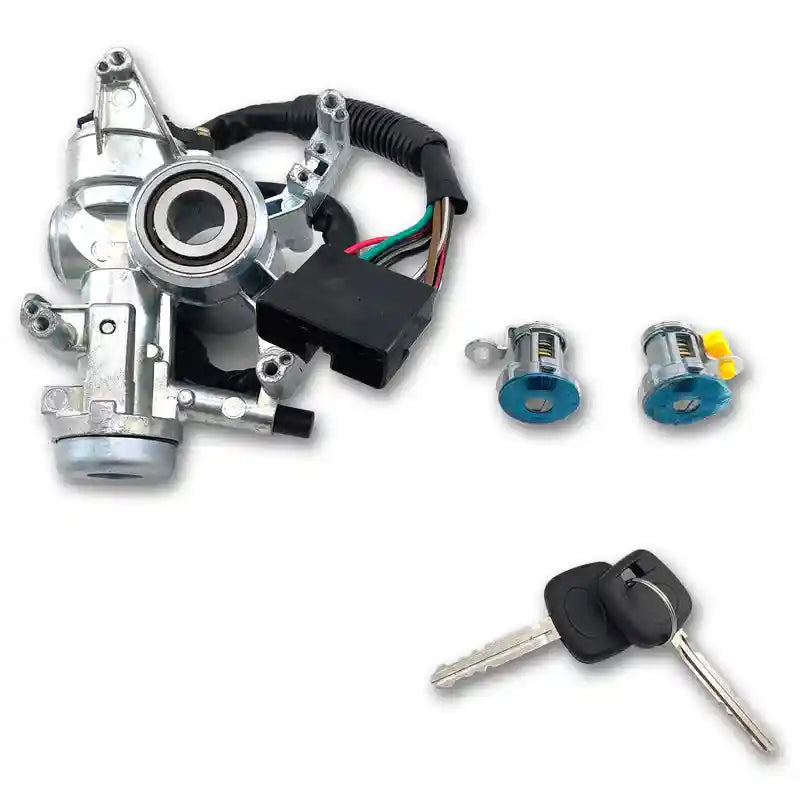

Ignition Barrel (9 Pins Door Lock Cylinder) – Toyota LandCruiser 70 75 76 78 79 Series
Replace your worn, sticking, loose, jammed or failed ignition barrel (with integrated 9-pin door lock cylinder) on your Toyota LandCruiser 70 Series (HZJ70/HZJ73/HZJ75/HZJ78/HZJ79/VDJ78/VDJ79), 75 Series (HJ75/HDJ75/HZJ75), 76 Series (VDJ76) or 78/79 Series (HZJ78/VDJ78/HZJ79/VDJ79) with this complete keyed-alike ignition & door lock assembly from Machter Auto Parts. One key operates ignition + both front doors – fixes no-start, key stuck in ignition, accessories not powering up, random cutouts or security issues common on high-mileage work utes, troop carriers or classics after years of dust, heat, vibration and key twisting in Aussie conditions.
Key Features
- Complete ignition barrel with integrated 9-pin door lock cylinder – includes new key set (2 keys)
- Direct fit for Toyota LandCruiser 70/75/76/78/79 Series (1990s–current 1HZ/1HD-FTE/1VD-FTV diesel models with 9-pin ignition switch)
- High-quality zinc-alloy barrel & precision tumblers – smooth key action and reliable locking
- Keyed-alike system – single key for ignition + both front doors (convenient & secure)
- Corrosion-resistant chrome finish – withstands weather, salt and dust
- Pre-lubricated internals – reduces sticking and wear over time
- 9-pin electrical connector – matches factory harness for plug-and-play install
Benefits
- Smooth, reliable key operation – no more jiggling, sticking or forcing the key
- Improved security – fresh tumblers deter tampering or bumping attempts
- Keyed-alike convenience – one key for ignition + both front doors (no more juggling keys)
- Eliminates worn-barrel issues – fixes loose, rattly or jammed locks common on older 70 Series
- Restores factory feel & safety – essential for roadworthy compliance and peace of mind in NSW
- Great for high-mileage work rigs, remote tourers or resto projects – brings security & starting back to reliable
Fitment Notes
- Suitable for Toyota LandCruiser 70/75/76/78/79 Series (HZJ/VDJ variants 1990s–current) with 9-pin ignition switch
- Professional installation recommended – remove steering column cover, disconnect battery, swap switch, re-align steering wheel and test all positions (ACC/ON/START)
- Keys are new – not matched to existing vehicle keys (use as new set or re-key existing)
- Inspect door handles, ignition switch wiring and linkages while replacing – common weak points on older 1HZ/1HD-T/1VD-FTV
Free shipping Australia-wide • 30-day returns • Machter Auto Parts – tough gear for real 4x4s
Frequently Asked Questions

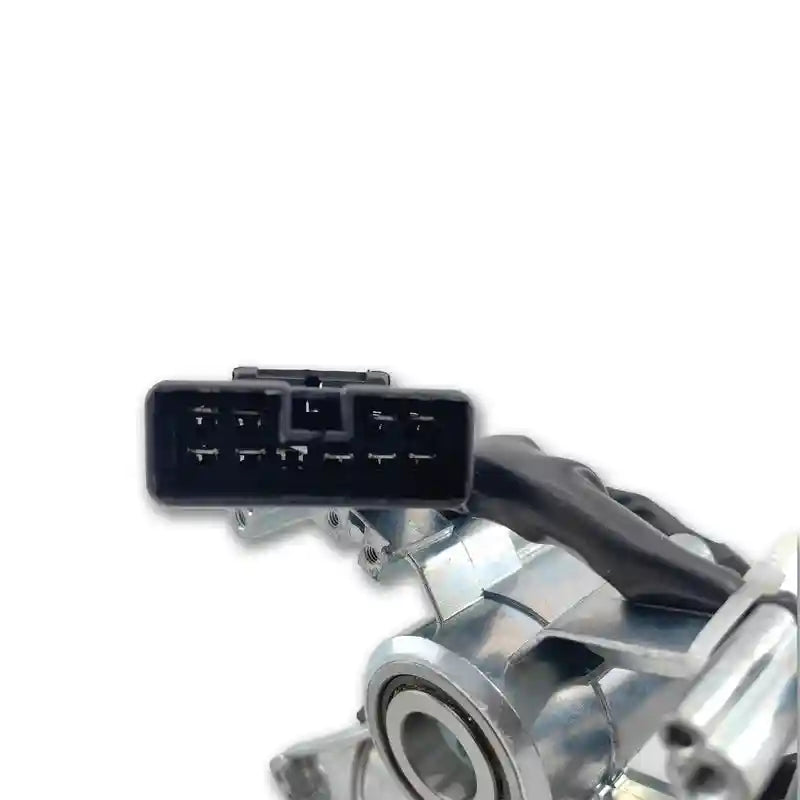

What does the 9-pin configuration on this ignition barrel refer to?
The 9-pin configuration specifies the exact electrical harness connector design attached to the rear ignition switch. This switch layout governs key accessories, starter relays, and glow-plug circuits. Because Toyota altered the wiring plugs across the production lifecycle of the 70 Series, it is critical to count the pins on your original plug to confirm this match.
Which LandCruiser 70 Series models is this barrel set suitable for?
This lock set is designed for specific model years within the 70, 75, 76, 78, and 79 Series range (including Troop Carrier, Ute, and Wagon variations). Because lock architectures and door handle mechanisms evolved dramatically across generations—especially between the older pre-2007 leaf-sprung models and the later V8 platforms—matching the plug layout and cylinder pins to your original set is mandatory before purchase.
Does this set include matching cylinders for the front doors?
Yes, this kit includes the core steering-column ignition barrel along with the matching exterior mechanical door lock cylinders. This full kit lets you completely refresh your vehicle's locking system, returning it back to a seamless single-key setup for both starting the motor and locking the cab doors.
Will my existing factory keys work with this new lock set?
No, your original keys will not operate the new mechanisms. This assembly comes complete with its own dedicated pair of matching keys cut precisely to fit the internal tumblers of the supplied ignition barrel and door cylinders. If your vehicle features a factory engine immobilizer, the transponder chip from your old key will need to be reconditioned or reprogrammed to work with the new key blades.
How difficult is it to change out the ignition barrel and door cylinders?
It is a manageable intermediate DIY mechanical project. Replacing the door cylinders requires unclipping the interior trim panels and pulling the locking linkage clips. The steering column ignition barrel can typically be released by sliding your key into the 'ACC' position and pressing down on a small spring-loaded locking pin located underneath the cast housing shroud.
