Steering Knuckle Alignment Tool - Suitable for Landcruiser 70 Series - 45 Series
Steering Knuckle Alignment Tool - Suitable for Landcruiser 70 Series - 45 Series
Couldn't load pickup availability
Built for the Bush, Backed by Experts
Built for the Bush, Backed by Experts
- Genuine Local Support: We aren't just a website; we’re 4WD enthusiasts based in Surry Hills, NSW.
- Free Australia-Wide Shipping: We ship every order across the country at no extra cost to you.
- Fitment Guarantee: We only stock gear we’ve tested on our own rigs to ensure it fits your Toyota perfectly.
- Trusted AU Business: Proudly Australian owned and operated with a verified ABN: 83 685 124 949.

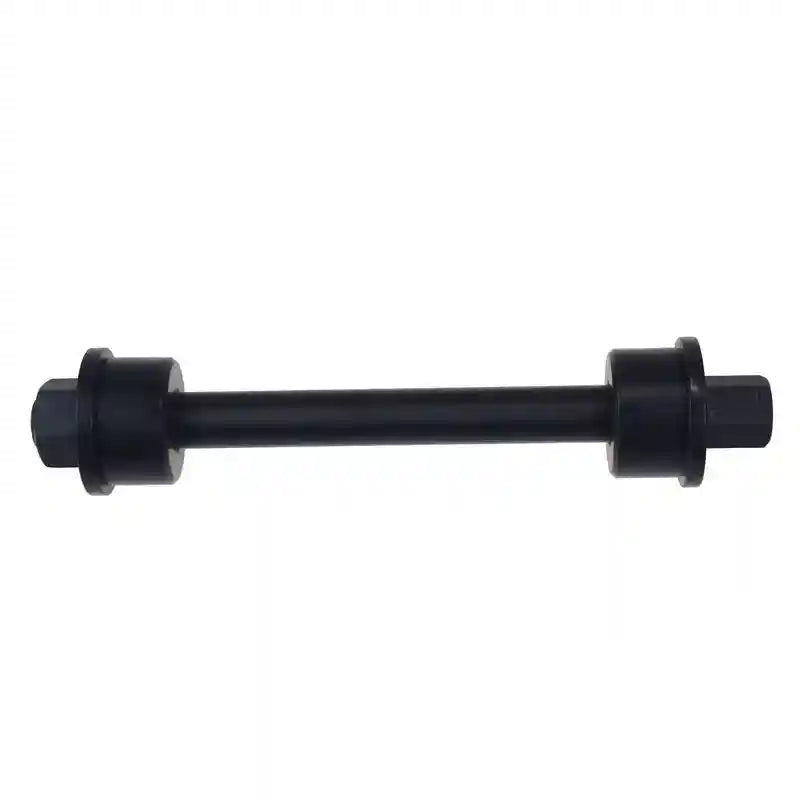

Steering Knuckle Alignment Tool – Toyota LandCruiser 70 Series & 45 Series
Make accurate steering knuckle and spindle alignment a breeze on your Toyota LandCruiser 70 Series (HZJ70/HZJ73/HZJ75/HZJ78/HZJ79/VDJ78/VDJ79) or classic 45 Series (FJ45/HJ45/HJ47) with this precision steering knuckle alignment tool from Machter Auto Parts. Essential for DIY or workshop rebuilds when replacing stub axles, spindles, bushings, bearings or knuckles – ensures perfect alignment of steering components, eliminates binding, reduces tyre wear and restores tight, straight tracking after CV/birfield work, knuckle service or front-end rebuilds on solid-axle Cruisers.
Key Features
- Precision-machined alignment tool – CNC'd from high-grade steel for exact fit and repeatability
- Direct fit for Toyota LandCruiser solid front axle models: 45 Series (FJ45/HJ45/HJ47 1970s-1980s) and 70 Series (HZJ/VDJ variants 1990s-current)
- Multi-function design – aligns knuckle spindle bore, steering arm mounting and tie rod positions
- Built-in reference surfaces & dial indicator mounts – allows accurate measurement of runout and alignment angles
- Heavy-duty construction – withstands workshop abuse and repeated use
- Compact & portable – easy storage in toolbox for field or remote work
Benefits
- Accurate knuckle/spindle alignment – prevents steering binding, notchy feel or premature CV/birfield wear
- Eliminates tyre scrub & uneven wear – keeps alignment correct after knuckle rebuilds or stub axle swaps
- Saves hours of trial & error – gets steering geometry right first time without guesswork
- Professional results at home – ideal for DIY rebuilds or when shops charge premium for alignment checks
- Essential for solid-axle 45/70 Series – especially after birfield changes, knuckle service or lift kits
- Great for work rigs, resto projects or serious off-road builds – ensures steering stays precise and safe
Fitment Notes
- Suitable for solid front axle Toyota LandCruiser 45 Series (FJ45/HJ45/HJ47) and 70 Series (HZJ/VDJ variants)
- Use with dial indicator or straight edge for best results – follow service manual for alignment specs
- Professional tip: Always check kingpin inclination, caster and toe after knuckle work – this tool makes it accurate
- Pair with new knuckle rebuild kit, birfield grease or steering linkage refresh for complete front-end overhaul
Free shipping Australia-wide • 30-day returns • Machter Auto Parts – tough tools for real 4x4 mechanics
Frequently Asked Questions
What is the function of the steering knuckle alignment tool?
This specialized tool is designed to perfectly align the steering knuckle (swivel hub) housing during reassembly. By ensuring the knuckle is precisely centered relative to the axle housing, it prevents premature wear on your knuckle seals and bearings, ensuring smooth steering operation.
Is this tool compatible with my LandCruiser?
Yes, this tool is specifically engineered for the solid-axle front ends of the 40/45 Series and 70 Series LandCruisers. It is an essential item for anyone performing a front-end or swivel-hub rebuild on these classic models.
Why is precise knuckle alignment critical?
If the knuckle is misaligned during assembly, it puts uneven pressure on the swivel seals and internal bearings. This can cause steering stiffness, uneven tire wear, and even lead to oil leaks from the swivel hub housing. This tool eliminates the guesswork, helping you achieve a perfect, factory-standard fit.
Is this tool suitable for home mechanics?
Absolutely. While professional mechanics use this to save time, it is an invaluable tool for home enthusiasts as well. It significantly simplifies the complex process of rebuilding the swivel hub, helping you achieve professional results without the frustration of manual alignment.
What materials is this tool made of?
This tool is machined from high-strength steel to ensure it remains durable throughout repeated use. Its robust design is built to withstand the workshop environment, making it a permanent and reliable addition to your LandCruiser maintenance toolkit.
